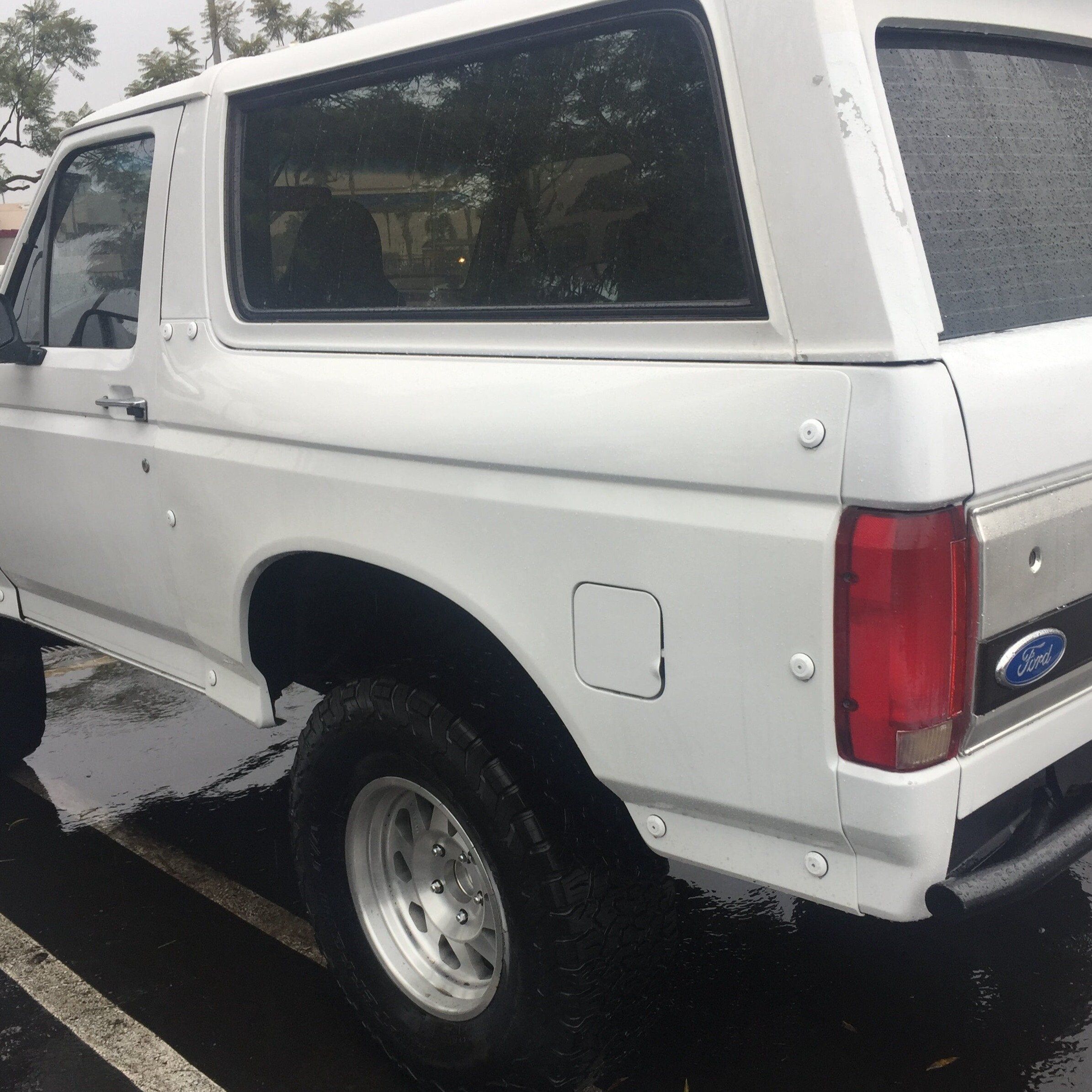

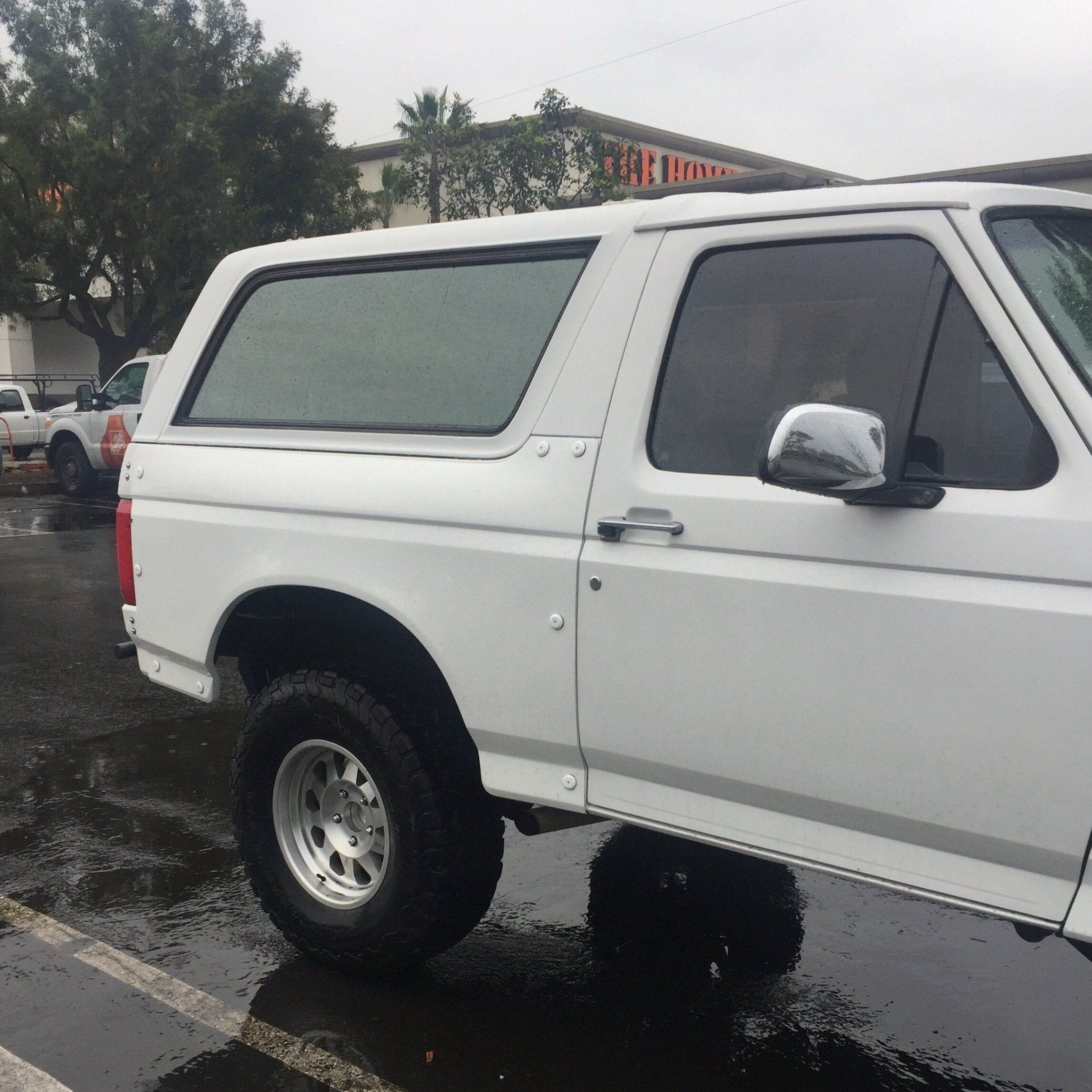

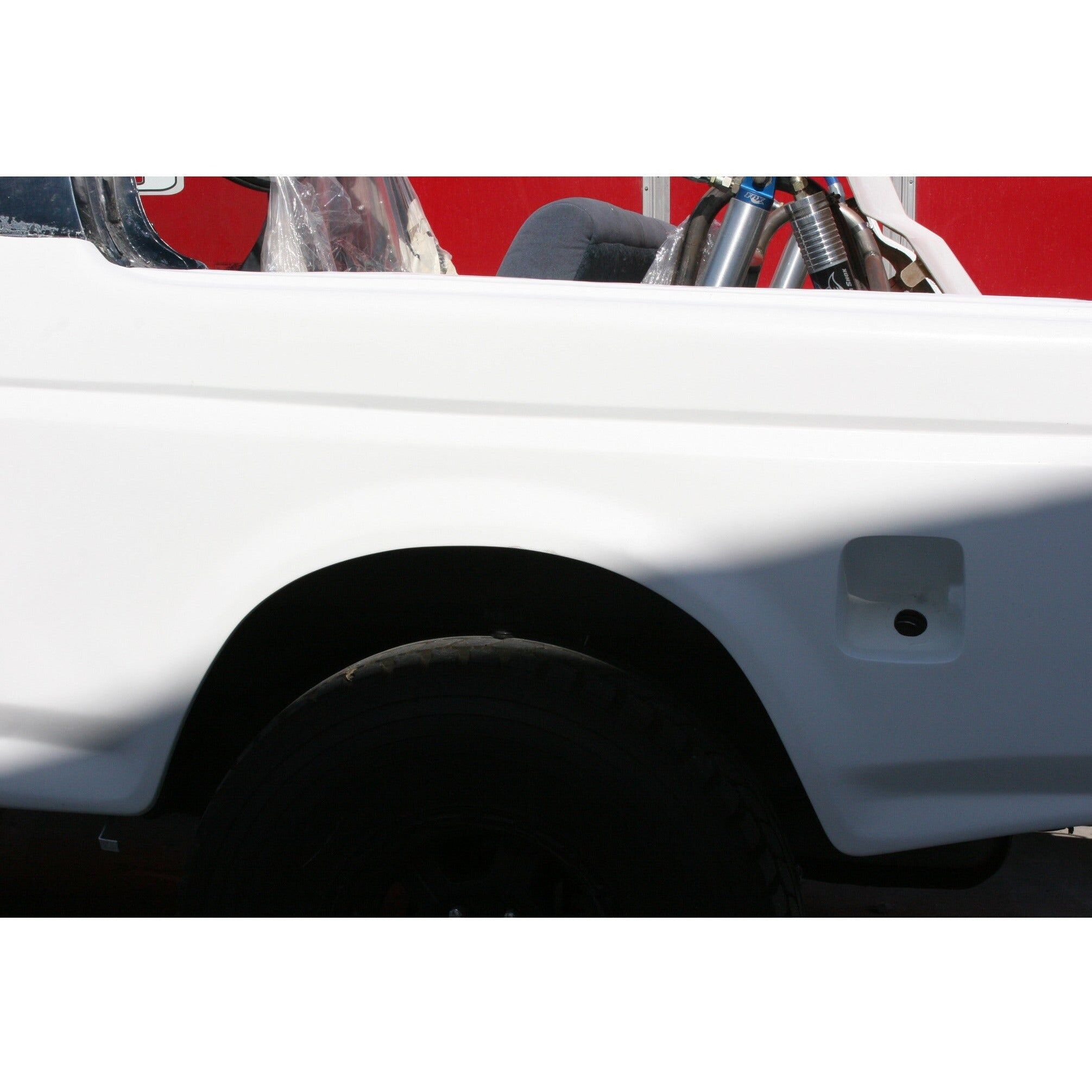

1980-1996 Ford Bronco Rear Quarter Panels Wide-Body 4" Flare 2" Rise - Pair

Installation Notes:

INSTALLATION INSTRUCTIONS: QUARTER PANELS

All of our products are fairly easy to install. These will be bonded on or bolted on. You will need a few hand tools and a few hours of time, depending on the products you have purchased. Also, you will reuse most of your stock hardware during this installationâ€"it is typical to have a few screws and bolts left over, however. Advanced Fiberglass Concepts LLC does recommend that a professional install for a seamless fit install these products.

Tools required for most install:

• Socket set
• Drill and drill bits
• Screw drivers (Flat head and Phillips);
• 120 grit sand paper (optional)
• Metal Shears or Sawzall or Plasma Cutter

Although this is not necessary, we always recommend removing the bed to make the process easier

Step 1: Remove the taillights, as well as the bumper.

Step 2: Use a spot weld cutter to remove the factory bedside spot welds, which are located around the bedside.

Step 3: Once the stock quarter panels have been removed, the inner bed structure will be showing and then it is time to mount our fiberglass quarter panels. Best way to start, is by hanging the new fiberglass bedside over the bed rail.

Step 4: Align the fiberglass quarter panels with all the bodylines on the cab and the taillights. You may have to sand or trim off the inner bed or fiberglass to get it into the correct position.

Step 5: Once you are happy with the alignment, it is time to bolt down the quarter panels. We recommend our customers to use 4-6 evenly spaced bolts along the inner bed rail, one between the cab and the bed, and 1-2 bolts around the tail light area. Drill holes out with a 3/8 drill bitâ€"the reason for this is so you can move the bedside back and forth to align the gap. Once you have the gaps spaced, tighten down the bolts. Do not over tighten! The fiberglass bedside will make sounds like it is crackingâ€"this is common as it is fiberglass, so do not worry.

Step 6: Now as the last step, it is important to secure the front and rear portion of the wheel well. There are supports in all trucks, although you can modify your old mounts to work with the fiberglass quarter panels or you can fabricate your own custom mounts.

You will need to be patient to get a good fit. You may need to sand some of the bedside down for desired fitment. This is because fiberglass quarter panels are thicker than steel.

Please keep in mindâ€"although all of our products are made from factory steel fenders, hoods, and quarter panels, there is a difference in fit because of the thickness of the fiberglass compared to steel. Therefore, please be patient when you start this job.

If you need further assistance with this installation, feel free to call usâ€"one of our techs will be more than happy to help you.

These instructions are useful for all quarter panels sold by Advanced Fiberglass Concepts â€" therefore some of the steps may not be needed or should be slightly altered to suit your particular vehicle and product needs.
