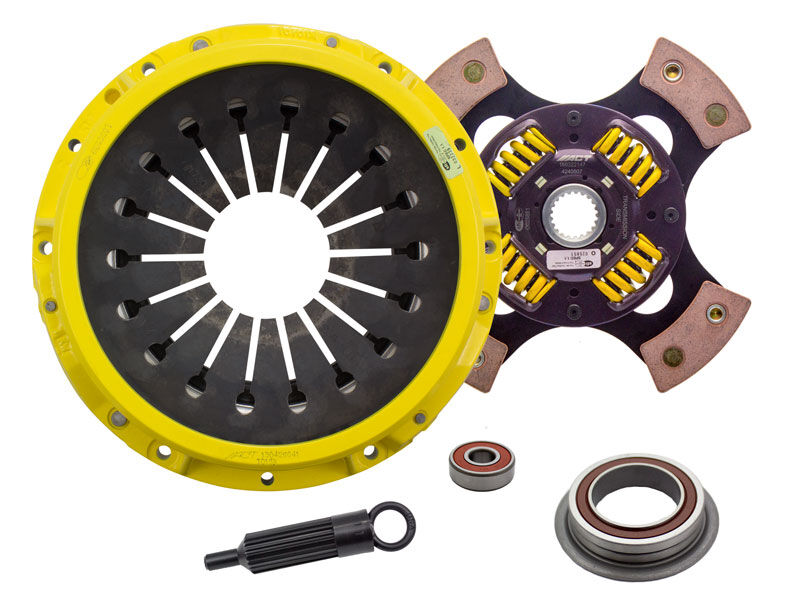

1987-1992 Toyota Supra 3.0L 6-CYL ACT Clutch Kit XT/Race Sprung 4 Pad
SKU
205197
$838.00
Free Shipping
(within lower 48 states)
The renowned brand Advanced Clutch Technology (ACT) has earned a great reputation in past few decades. The brand is known for its high-performance products and reliable driveline components in the market. From top-notch customer service to delivering quality products, the brand does not compromise on its coveted reputation. ACT products have been improved considerably in the past few years due to the integration of the latest technology for better street performance. Advanced CAM tools, FEA, and CAD stimulation ensure an unparallel and optimized performance. Not only this, it is hard to find a match for this brand, when it comes to durability and reliability. There is no denying that ACT is quintessential in terms of best design methodologies, product engineering and use of high-end materials. The brand has the best manufacturing techniques such as chromoly steel forging to align grain structures. ACT clutch is an example of ACT's unique products. It comes with steady pedal feel, durability, consistent torque capacity, and high functionality.
TS2-XTG4 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.
- Moderate to heavy pedal effort, aggressive engagement, OE to mild gear rattle.
- Moderate friction life, extended by ACT's exclusive diaphragm design.
- Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance.
- Recommended for high horsepower street or race use.
- 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability.
Installation Notes:
Professional installation by a licensed mechanic is required.
Specifications:
Clutch Disc Diameter (MM): 240
Input Shaft Diameter (IN): 39448
Input Spline Quantity: 21
Pressure Plate Type: Xtreme
Product Weight (lbs.): 21.7
Torque Capacity (ft/lbs.): 630
Torque Capacity Over OE: 1.09
| Brand | Advanced Clutch Technology (ACT) |
|---|---|
| Part Number | ACT-TS2-XTG4 |
| Shipping Method | UPS/FedEx/USPS Ground |
| California Prop 65 Warning | This product can expose you to chemicals including carbon black, glass wool fibers, and silica (in clutch discs), chromium and nickel, which are known to the State of California to cause cancer or birth defects or other reproductive harm. for more information, visit www.P65Warnings.ca.gov |
