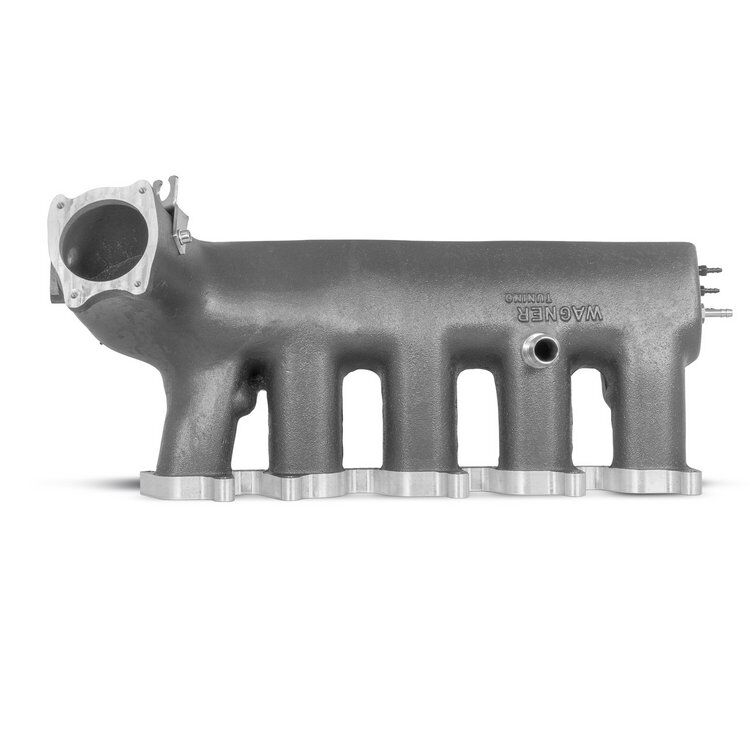

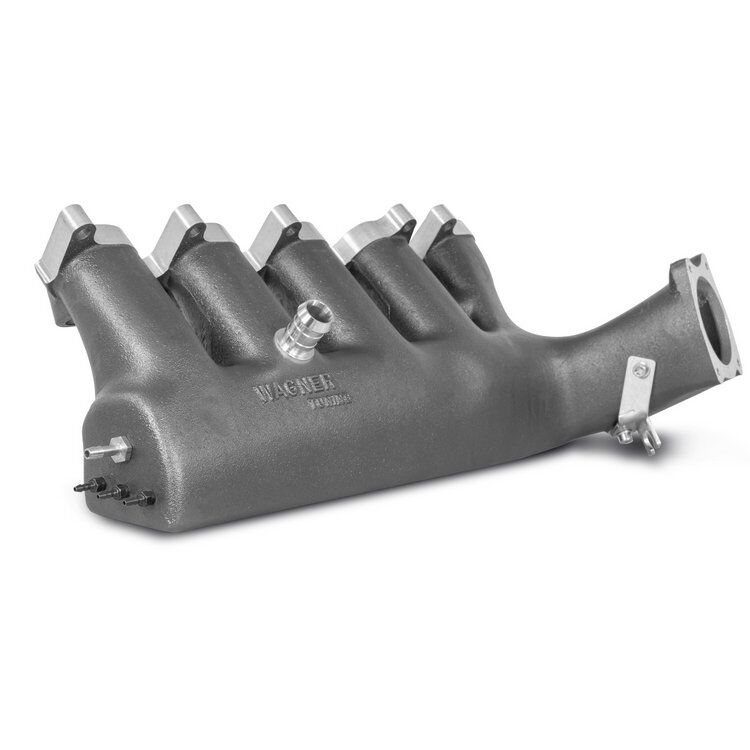

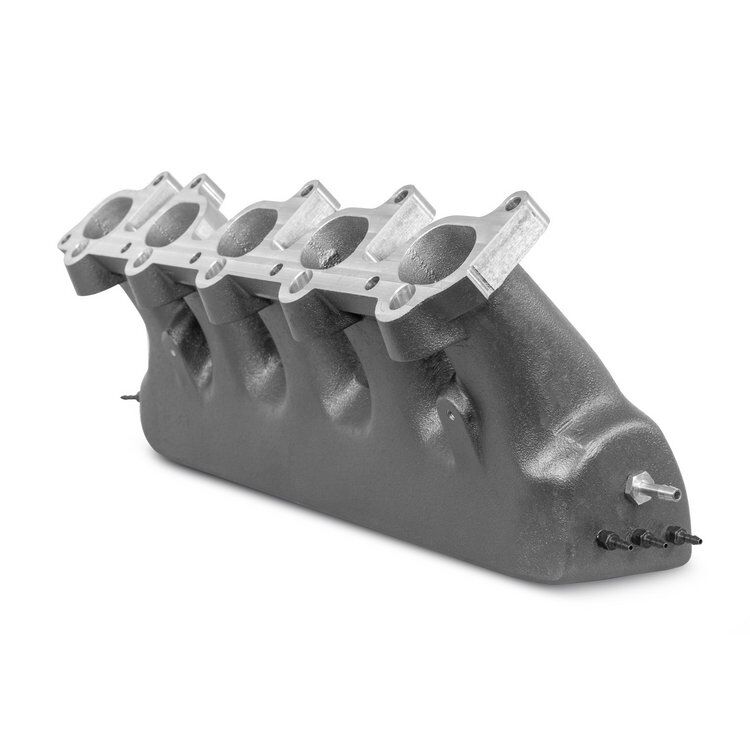

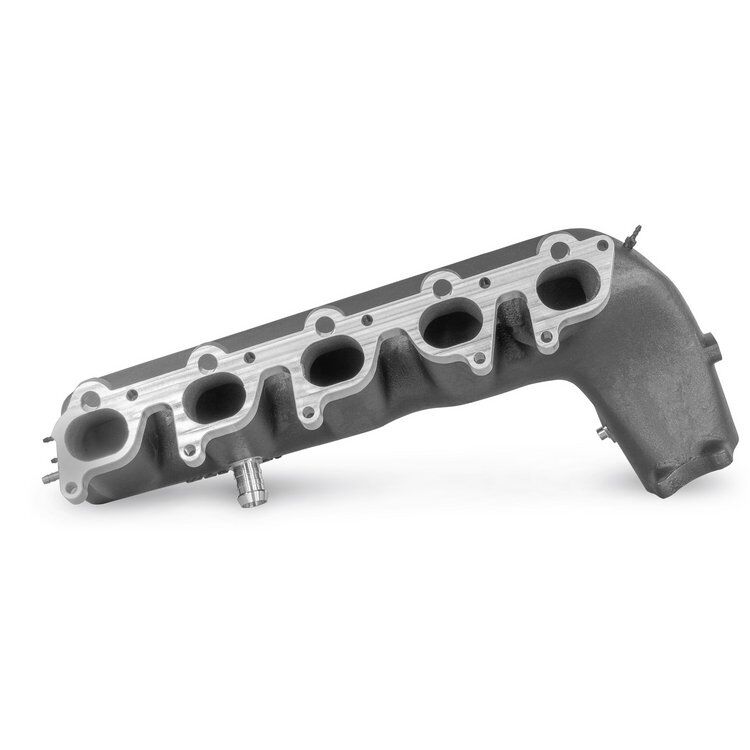

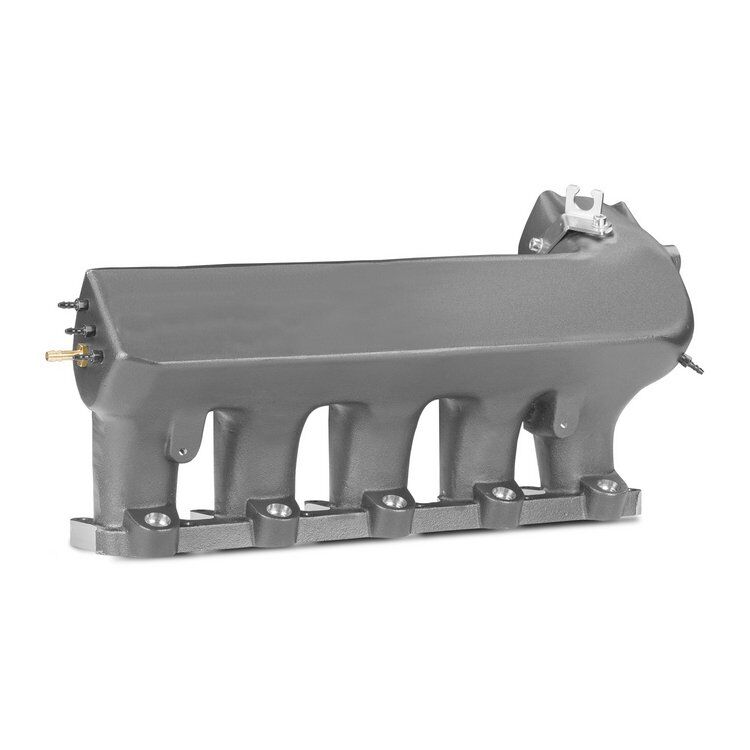

1992-1994 Audi S4 2.2L Short Intake Manifold With Aux Air Valve by Wagner Tuning

This Item Can Only Be Used In A Competition Racing Vehicle That Is Not Driven On Public Roads, Under California State Law It Is Not Legal For Use In Any Other Motor Vehicle!

• Version with connection for aux Air Valve ( for aftermarket ECU)

Wagner Tuning aluminum cast intake manifolds are CAD designed and flow optimized for each vehicle to produce the ultimate in horsepower and torque from your vehicle.

Constructed of 8.5 lbs. of high grade AlSi10Mg Cast aluminum and then CNC machined to our exacting specifications, each manifold is a performance work of art. The intake comes with a special surface treatment, which is equal to the new TTRS intake manifold.

The Wagner Tuning intake manifold features:

• Lower air temperature increased throttle response.
• Smaller size when installed allows for larger intercoolers.
• Tuned intake pulse reduces throttle body valve flutter.
• Optimized airflow allowing for increased cylinder fill during intake cycle.
• OEM+ fit and finish for easy installation.

Note: For ABY to ADU code engines a modified servo pump bracket is required.

As the throttle body location has been relocated to the front of the engine compartment, you must use the OEM Audi throttle cable part

893721555R. All connectors for vacuum and other ports are preinstalled using high grade steel hardware and fittings.

Custom mounting of the vacuum and other ports are available (if feasible) The intake manifold is delivered ready to install, no other modifications needed!

• Weight: 13 lbs.
• Dimensional weight: 32.80 cm/lbs.
• Dimensions: L 24 x W 16 x H 12 inch
