The renowned brand Advanced Clutch Technology (ACT) has earned a great reputation in past few decades. The brand is known for its high-performance products and reliable driveline components in the market. From top-notch customer service to delivering quality products, the brand does not compromise on its coveted reputation. ACT products have been improved considerably in the past few years due to the integration of the latest technology for better street performance. Advanced CAM tools, FEA, and CAD stimulation ensure an unparallel and optimized performance. Not only this, it is hard to find a match for this brand, when it comes to durability and reliability. There is no denying that ACT is quintessential in terms of best design methodologies, product engineering and use of high-end materials. The brand has the best manufacturing techniques such as chromoly steel forging to align grain structures. ACT clutch is an example of ACT's unique products. It comes with steady pedal feel, durability, consistent torque capacity, and high functionality.

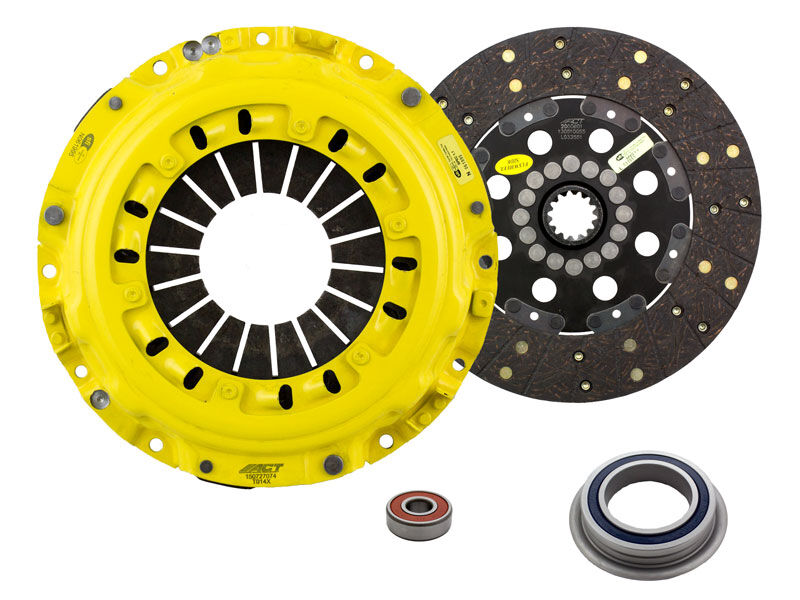

TS4-XTMM kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT Modified spring-centered street discs feature premium organic friction material with high copper content for better heat transfer and steel-backed lining for greater burst strength and durability. These discs are modified with reduced marcel for faster shift action to complement ACT pressure plates. The heavy duty torsional dampening springs are stronger, in most cases, than standard springs and are provided in the best sizes and spring rates to suit the application. Modified street discs allow for quicker shifting and engagement. Quiet operation with increased strength and reliability.
- Moderate to heavy pedal effort, smooth positive engagement, OE to mild gear rattle.
- Longer clutch life achieved through ACT's exclusive diaphragm design.
- Precisely balanced and uses premium organic friction materials for heat tolerance, faster recovery from overheating and prevents warping of mating surfaces.
- Recommended for street and occasional race use.
- 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability.
Installation Notes:
Professional installation by a licensed mechanic is required.
Specifications:
Clutch Disc Diameter (MM): 250
Input Shaft Diameter (IN): 37987
Input Spline Quantity: 14
Pressure Plate Type: Xtreme
Product Weight (lbs.): 18.6
Torque Capacity (ft/lbs.): 642
Torque Capacity Over OE: 0.62
Fitment & Application:
- 1998 Toyota Supra Twin Turbo 3.0L 6-CYL Turbocharged 2JZ-GTE
- 1997 Toyota Supra Twin Turbo 3.0L 6-CYL Turbocharged 2JZ-GTE
- 1996 Toyota Supra Twin Turbo 3.0L 6-CYL Turbocharged 2JZ-GTE
- 1995 Toyota Supra Twin Turbo 3.0L 6-CYL Turbocharged 2JZ-GTE
- 1994 Toyota Supra Twin Turbo 3.0L 6-CYL Turbocharged 2JZ-GTE
- 1993 Toyota Supra Twin Turbo 3.0L 6-CYL Turbocharged 2JZ-GTE
Brand | Advanced Clutch Technology (ACT) |
---|---|
Part Number | ACT-TS4-XTMM |
Shipping Method | UPS/FedEx/USPS Ground |
Availability | Normally ships within 1 business day. |
California Prop 65 Warning | This product can expose you to chemicals including carbon black, glass wool fibers, and silica (in clutch discs), chromium and nickel, which are known to the State of California to cause cancer or birth defects or other reproductive harm. for more information, visit www.P65Warnings.ca.gov |
