1999-2003 Ford F-350 Super Duty Turbo Diesel V8 7.3L DFS780 Fuel Pump - Full-time Operation - 42-13011

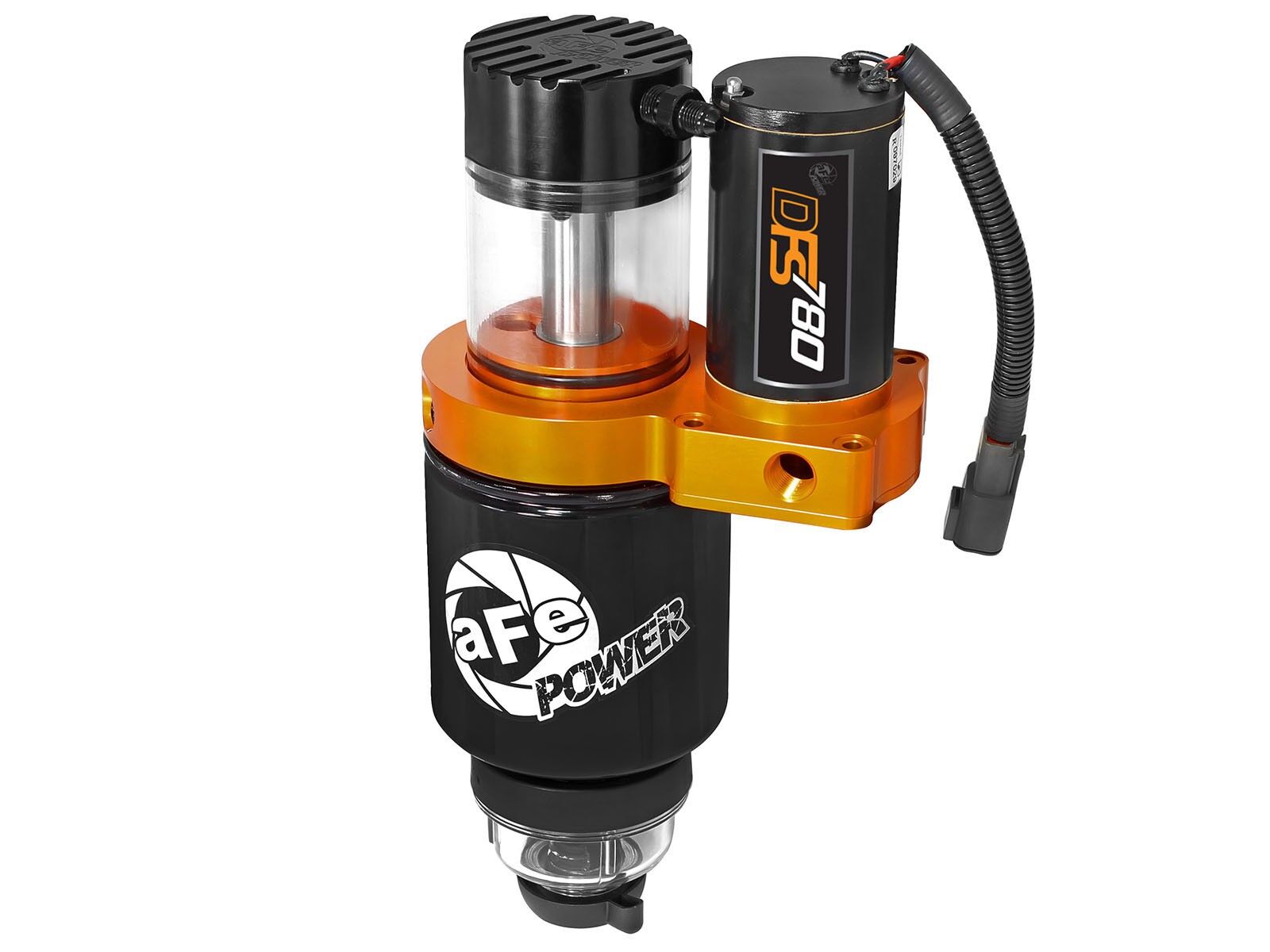

1999-2003 Ford F-350 Super Duty Turbo Diesel V8 7.3L DFS780 Fuel Pump - Full-time Operation

SKU
210870
Availability
Normally ships in ~1-2 business days.
$1,004.00
Free Shipping (within lower 48 states)
-
+

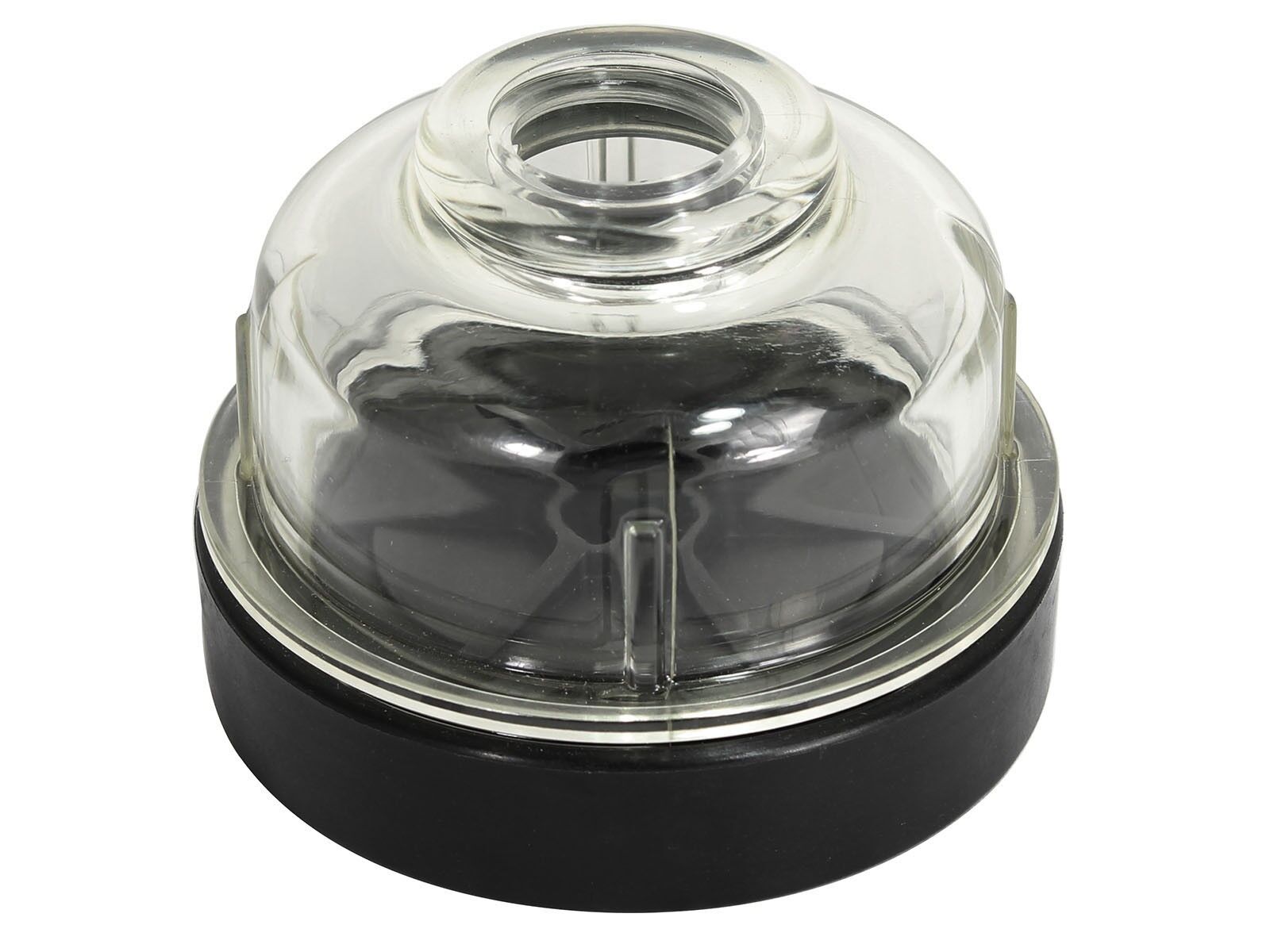

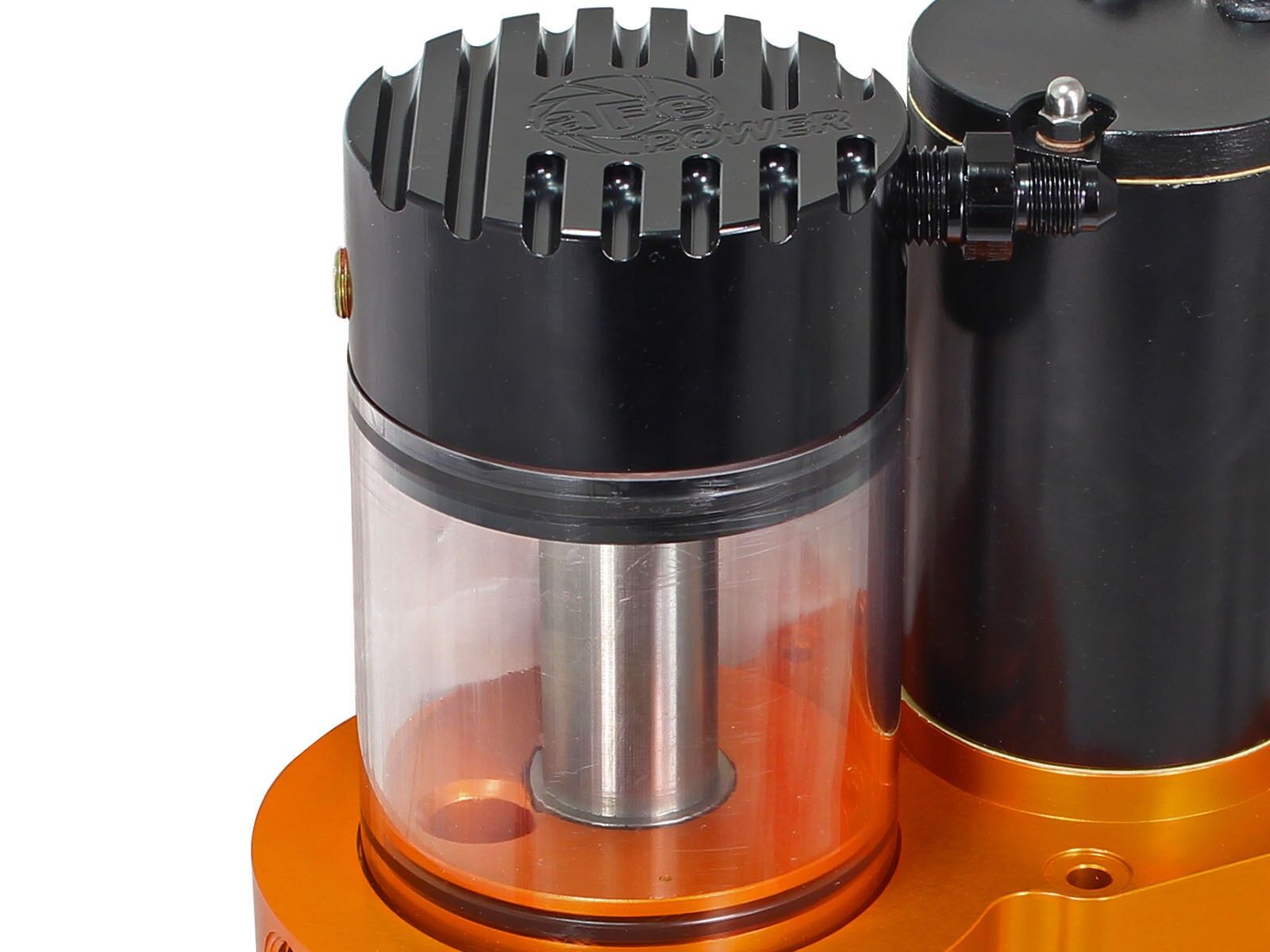

Clear High-Impact Polycarbonate Sight Glass:
Allows visual inspection of fuel.

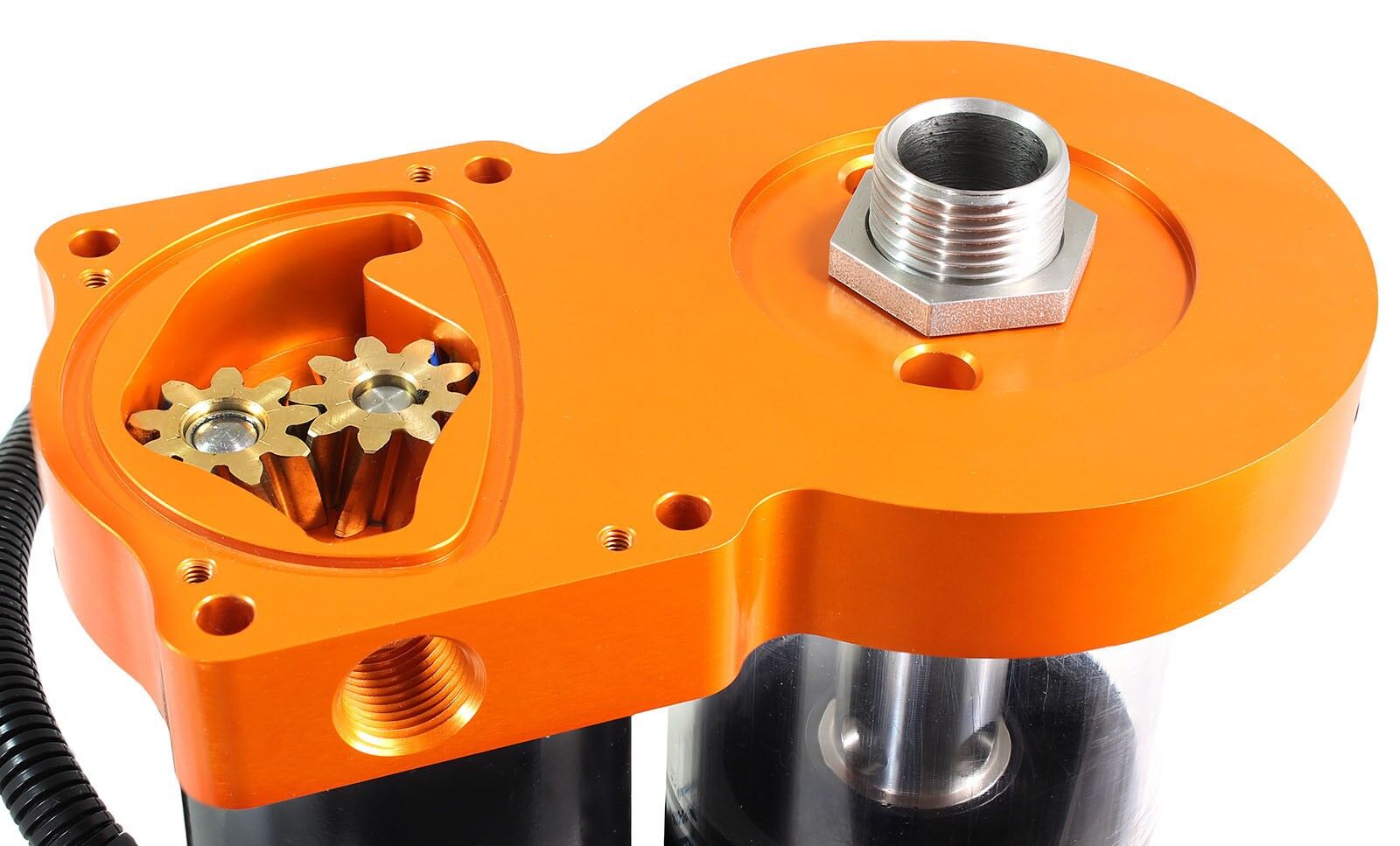

Helical Bronze Spur Gears:
Bronze gears more forgiving of contaminants than steel gears. The Helical spur gear design runs quieter than straight cut gears.

Billet 6061-T6 Aluminum Manifold:
Eliminates porosity concerns with cast aluminum.

"Marine Grade" Motor:
Protected against dust intrusion and powerful water jets.

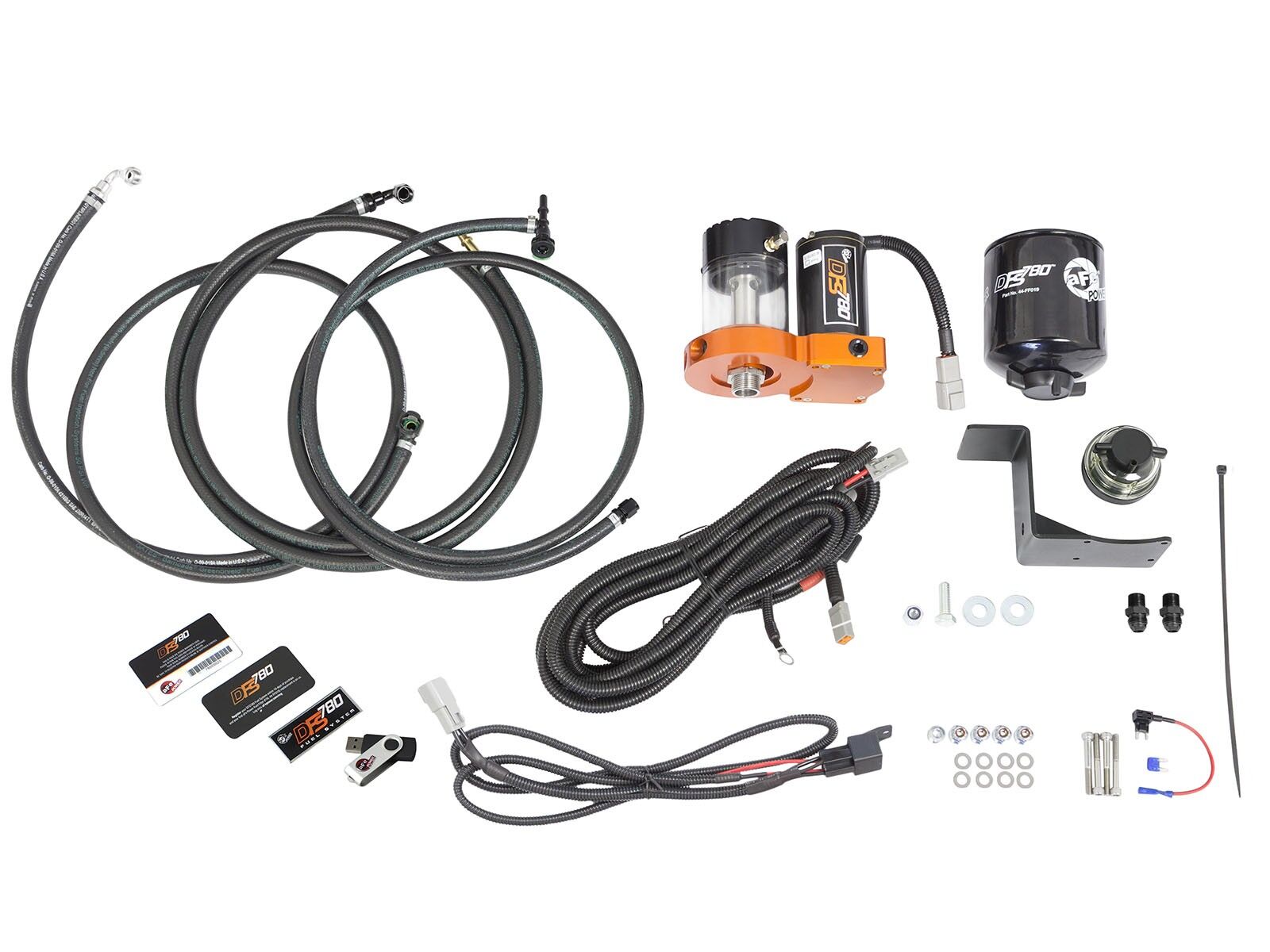

Plug & Play Installation:
Supplied harness attaches directly to battery and utilizes Deutsch weather-proof connectors. No cutting or modifications of the stock fuel lines required. Vehicle can easily be returned to stock.

PEEK Bearing Wear Surfaces:
The DFS780 spur gears ride on PEEK (Polyether Ether Ketone) bearing surfaces to reduce both noise and wear.

Contoured CNC Machining Of Manifold Passages:
Enhances flow through the manifold to reduce pressure drop due to flow restrictions.

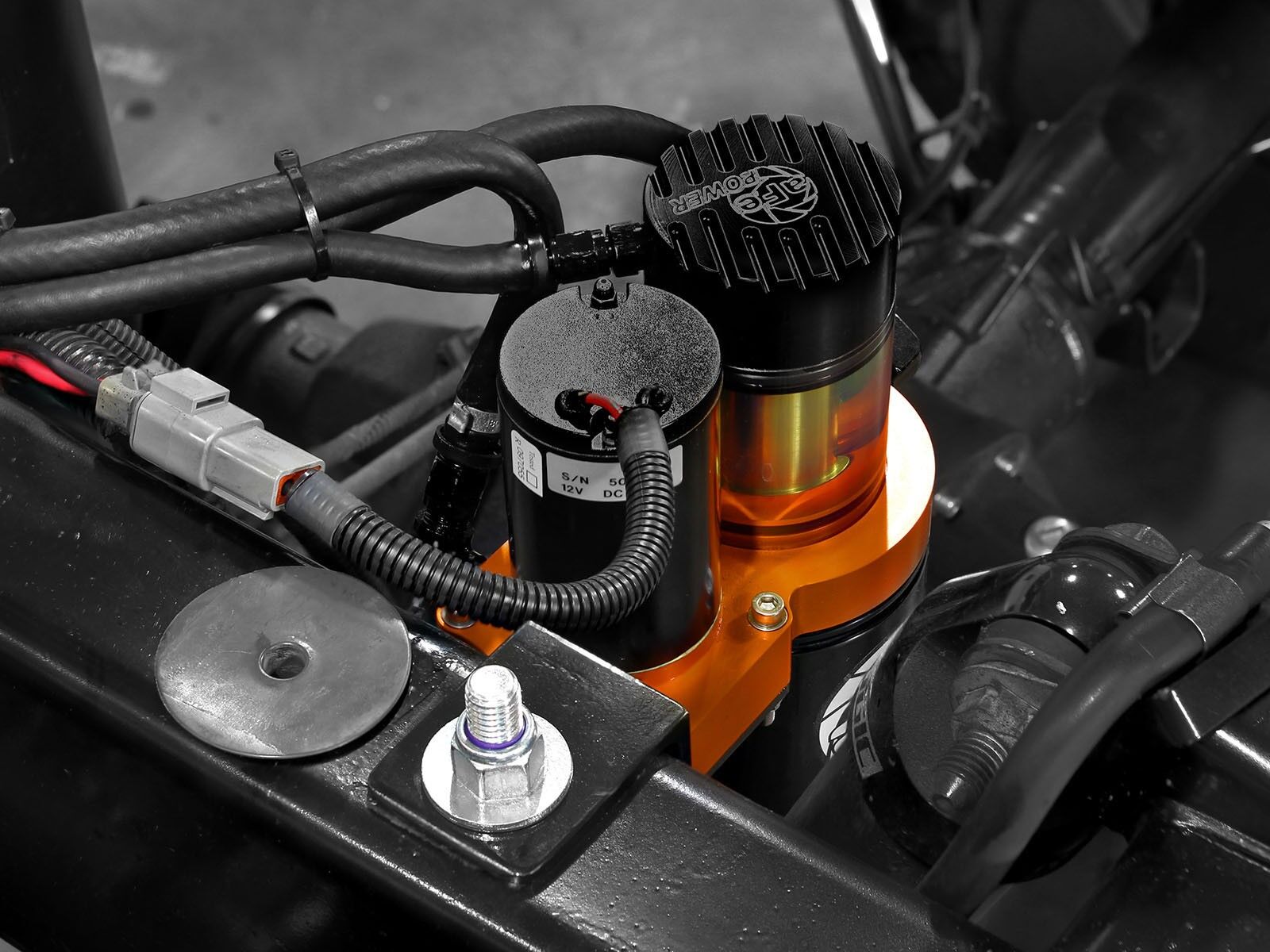

Direct Bolt-on Steel Mounting Bracket:
Heavy duty bracket mounts to the frame and utilizes existing hole to secure.

Fuel Pressure Gauge Port:
1/8 NPT port allows customer to attach an external pressure gauge to monitor fuel pressure.

O.E Quality Viton Seals:
Compatible with diesel and biodiesel fuels.

Emissions Disclaimer:
Some or all of the applications listed are 50-state exempt, please see CARB EO# D-550-34 for details.

  • Clear high-impact polycarbonate sight glass for visual inspection of fuel
  • Helical Spur Gears runs quieter than straight cut gears
  • "Marine Grade" motor protects against dust and water
  • 187 GPH @ 8-10 psi Flow Rating
  • Contoured CNC manifold enhances flow
  • Fuel pressure gauge port
  • O.E. quality Viton Seals
  • Typical install is 2 hours
  • Built in the U.S.A.

Installation Notes:

Professional installation required.
