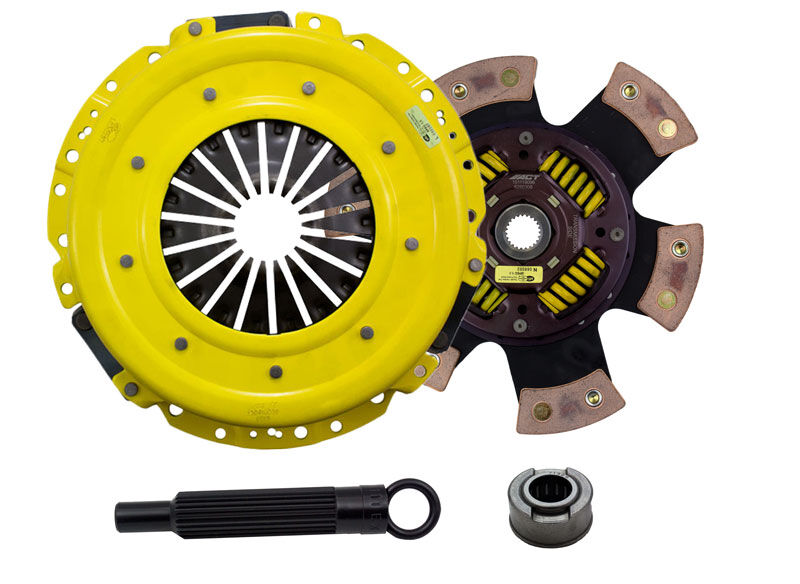

2011-2017 Ford Mustang 5.0L 8-CYL ACT Clutch Kit HD/Race Sprung 6 Pad Kit - FM13-HDG6 - Advanced Clutch 2011-2017 Ford Mustang 5.0L 8-CYL ACT Clutch Kit HD/Race Sprung 6 Pad 2011-2017 Ford Mustang 5.0L 8-CYL ACT Clutch Kit HD/Race Sprung 6 Pad
2011-2017 Ford Mustang 5.0L 8-CYL ACT Clutch Kit HD/Race Sprung 6 Pad Kit - FM13-HDG6 - Advanced Clutch

2011-2017 Ford Mustang 5.0L 8-CYL ACT Clutch Kit HD/Race Sprung 6 Pad

SKU
202170
Availability
Normally ships within 1 business day.
$584.00
Free Shipping (within lower 48 states)
-
+

The renowned brand Advanced Clutch Technology (ACT) has earned a great reputation in past few decades. The brand is known for its high-performance products and reliable driveline components in the market. From top-notch customer service to delivering quality products, the brand does not compromise on its coveted reputation. ACT products have been improved considerably in the past few years due to the integration of the latest technology for better street performance. Advanced CAM tools, FEA, and CAD stimulation ensure an unparallel and optimized performance. Not only this, it is hard to find a match for this brand, when it comes to durability and reliability. There is no denying that ACT is quintessential in terms of best design methodologies, product engineering and use of high-end materials. The brand has the best manufacturing techniques such as chromoly steel forging to align grain structures. ACT clutch is an example of ACT's unique products. It comes with steady pedal feel, durability, consistent torque capacity, and high functionality.

FM13-HDG6 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad, spring-centered race disc features a spring-center to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad, spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad, spring-centered disc is recommended for larger clutch sizes to absorb more heat.

  • Light to moderate pedal effort, aggressive engagement, OE to mild gear rattle.
  • Moderate friction life, extended by ACT's exclusive diaphragm design.
  • Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance.
  • Recommended for high horsepower street or race use.
  • 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability.

Installation Notes:

Professional installation by a licensed mechanic is required. Must use conversion dowels included with pressure plate if installing clutch kit on OE flywheel.

Specifications:

Clutch Disc Diameter (MM): 280
Disc Material: Ceramic
Input Shaft Diameter (IN): 1
Input Spline Quantity: 23
Pressure Plate Type: Heavy Duty
Product Weight (lbs.): 29.4
Torque Capacity (ft/lbs.): 770
Torque Capacity Over OE: 0.85

More Information
Brand Advanced Clutch Technology (ACT)
Part Number ACT-FM13-HDG6
Shipping Method UPS/FedEx/USPS Ground
Availability Normally ships within 1 business day.
California Prop 65 Warning This product can expose you to chemicals including carbon black, glass wool fibers, and silica (in clutch discs), chromium and nickel, which are known to the State of California to cause cancer or birth defects or other reproductive harm. for more information, visit www.P65Warnings.ca.gov
