ATS diesel performance has been a well recognized name in the pickup truck landscape for more than twenty years. The company creates innovative products for commercial fleets to personal trucks. It offers a full range of repair and service for its customer’s diesel pickups (light duty). Whether a customer is looking for long term reliability or improving overall performance, ATS Diesels products are the way to go. The company provides all the necessary parts for diesel transmission and engines making sure that trucks are able to not only survive but thrive in the toughest of environments. ATS diesel manufactures, designs, invents, and distributes in Arvada, Colorado. ATS provides its customers with the most reliable and finest off road, racing, and towing products for trucks.

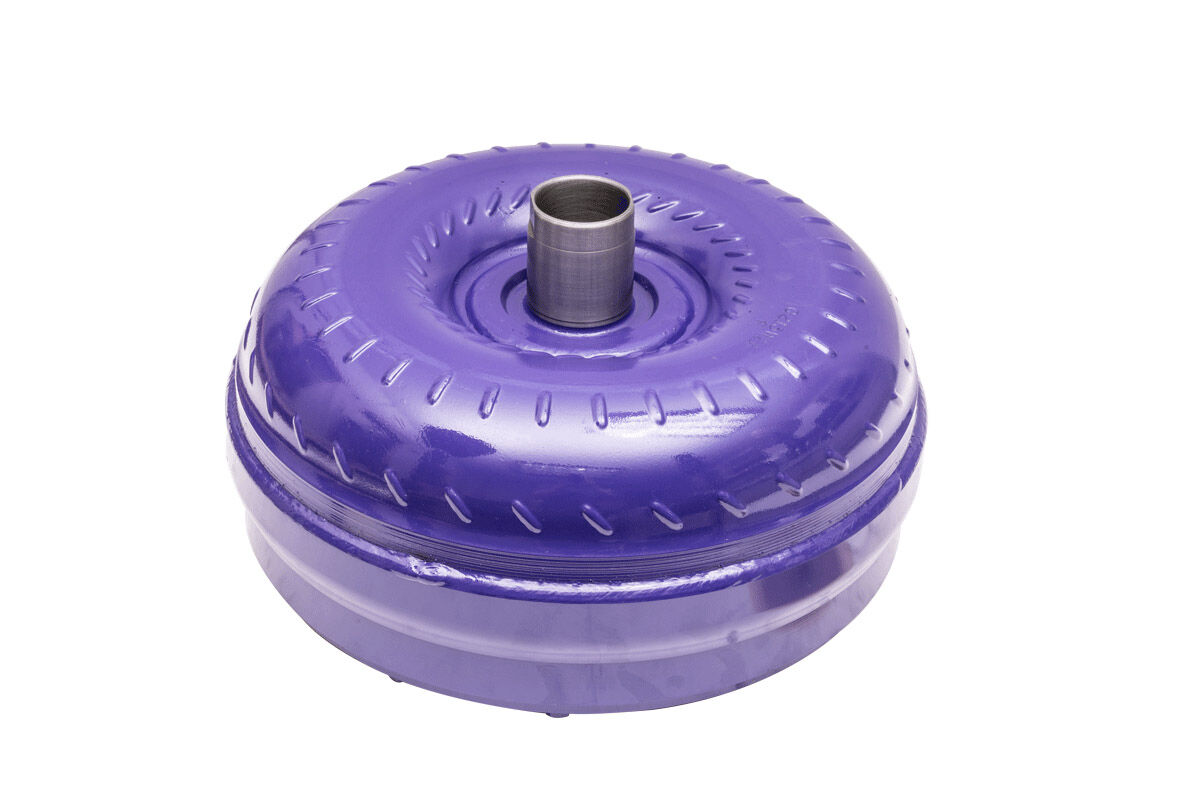

Standard in all transmission packages, and available individually, is the ATS Five Star Torque Converter. This torque converter is built to handle daily driving and towing duties while delivering reliable performance.
The ATS Five Star utilizes an optimized factory stall speed that features improved torque multiplication. With factory torque multiplication at approximately 1.25:1, the ATS Five Star boasts 2.4:1. This occurs when peak engine torque is achieved. Increased torque multiplication results in improved vehicle response, towing and driving ability.
Every Five Star comes standard with a 5 year / 500,000 mile warranty. When the most efficient torque converter is required, look no further than ATS Five Star Torque Converter.
Details:
- Five Star Viskus Clutch Drive Torque Converter
- Factory Stall Speed 1300-1500 RPM
- Billet Stator F-Trim
- Positive Impeller
- Patented Viskus Clutch Drive System for increased efficiency
- Billet Cover with Patented Square Flank Drive
- Square Tab Construction (Not Round)
- Viskus Disc CNC Laser Cut Clutch Plates
- Billet Piston with Patented Flank Drive Tab design
- Proprietary ATS exclusive Clutch Formulation with unique bonding technology (ensures 100 percent chemical Bond)
- Redesigned Spring Dampener supports increased torque loads
- 4340 hardened turbine splines provide longevity and reliability
- Fully welded turbine and impeller vanes
- CNC Stator with high flow windows increase oil flow, providing increased efficiency
- Full roller bearing construction between high load areas
- 4340 CNC cut pump drive hub locked into impeller housing
- Plasma welded for unsurpassed strength
- Sold Individually
- SKU: 3029503326
Fits:
- 2007.5-2010 Ford F250|F350|F450 Truck w/6.4L Powerstroke and 5R110 TorqShift Transmission
Specifications:
Warranty: 5-Year/500,000 Mile Limited Warranty
Core Charge: $400
Location: Front
Application: Competition
Material: Billet Steel
Make: Ford
Core Type: Single
Fitment & Application:
- 2010 Ford F-450 Super Duty XLT 6.4L
- 2010 Ford F-450 Super Duty XL 6.4L
- 2010 Ford F-450 Super Duty Lariat 6.4L
- 2010 Ford F-450 Super Duty King Ranch 6.4L
- 2010 Ford F-450 Super Duty Harley-Davidson Edition 6.4L
- 2010 Ford F-350 Super Duty XLT 6.4L
- 2010 Ford F-350 Super Duty XL 6.4L
- 2010 Ford F-350 Super Duty Lariat 6.4L
- 2010 Ford F-350 Super Duty King Ranch 6.4L
- 2010 Ford F-350 Super Duty Harley-Davidson Edition 6.4L
- 2010 Ford F-350 Super Duty Cabela's 6.4L
- 2010 Ford F-250 Super Duty XLT 6.4L
- 2010 Ford F-250 Super Duty XL 6.4L
- 2010 Ford F-250 Super Duty Lariat 6.4L
- 2010 Ford F-250 Super Duty King Ranch 6.4L
- 2010 Ford F-250 Super Duty Harley-Davidson Edition 6.4L
- 2010 Ford F-250 Super Duty Cabela's 6.4L
- 2009 Ford F-450 Super Duty XLT 6.4L
- 2009 Ford F-450 Super Duty XL 6.4L
- 2009 Ford F-450 Super Duty Lariat 6.4L
- 2009 Ford F-450 Super Duty King Ranch 6.4L
- 2009 Ford F-450 Super Duty Harley-Davidson Edition 6.4L
- 2009 Ford F-350 Super Duty XLT 6.4L
- 2009 Ford F-350 Super Duty XL 6.4L
- 2009 Ford F-350 Super Duty Lariat 6.4L
- 2009 Ford F-350 Super Duty King Ranch 6.4L
- 2009 Ford F-350 Super Duty Harley-Davidson Edition 6.4L
- 2009 Ford F-350 Super Duty FX4 6.4L
- 2009 Ford F-350 Super Duty Cabela's 6.4L
- 2009 Ford F-250 Super Duty XLT 6.4L
- 2009 Ford F-250 Super Duty XL 6.4L
- 2009 Ford F-250 Super Duty Lariat 6.4L
- 2009 Ford F-250 Super Duty King Ranch 6.4L
- 2009 Ford F-250 Super Duty Harley-Davidson Edition 6.4L
- 2009 Ford F-250 Super Duty FX4 6.4L
- 2009 Ford F-250 Super Duty Cabela's 6.4L
- 2008 Ford F-450 Super Duty XLT 6.4L
- 2008 Ford F-450 Super Duty XL 6.4L
- 2008 Ford F-450 Super Duty Lariat 6.4L
- 2008 Ford F-450 Super Duty King Ranch 6.4L
- 2008 Ford F-350 Super Duty XLT 6.4L
- 2008 Ford F-350 Super Duty XL 6.4L
- 2008 Ford F-350 Super Duty Lariat 6.4L
- 2008 Ford F-350 Super Duty King Ranch 6.4L
- 2008 Ford F-350 Super Duty Harley-Davidson Edition 6.4L
- 2008 Ford F-350 Super Duty FX4 6.4L
- 2008 Ford F-250 Super Duty XLT 6.4L
- 2008 Ford F-250 Super Duty XL 6.4L
- 2008 Ford F-250 Super Duty Lariat 6.4L
- 2008 Ford F-250 Super Duty King Ranch 6.4L
- 2008 Ford F-250 Super Duty Harley-Davidson Edition 6.4L
- 2008 Ford F-250 Super Duty FX4 6.4L
Brand | ATS Diesel |
---|---|
Part Number | ATS-3029503326 |
Shipping Method | UPS/FedEx/USPS Ground |
