AWE Tuning Performance Intercooler Kit for Audi 2.7T - with Carbon Fiber Shrouds

AWE Tuning Audi 2.7T Performance Intercooler Kit

The tested AWE Tuning Audi 2.7T Performance Intercooler Kit design uses a closely stacked bar and plate type core, to minimize pressure drops while maximizing heat transfer. Our design target was to exceed the cooling and flow capabilities of Audi RS4 intercoolers -- and through this proven design, we have accomplished this (See detailed test results in the Performance Specs tab). In summary, the AWE Tuning Audi 2.7T Performance Intercooler equals the RS4 intercooler flow rates, and definitively conquers the RS4 intercooler temperature drops.

Tested. Hard.

The construction of the AWE Tuning Audi 2.7T Performance Intercooler Kit is of the highest quality -  Efficient cast end tanks are used to ensure maximum flow, and each intercooler assembly is pressure checked before it leaves our manufacturing facility. And in 2012, AWE Tuning introduced carbon fiber shrouds to the mix, producing a lighter, and more aesthetically appealing kit as well.

The bulk of our side mount intercooler testing was conducted on S4s with the AWE Tuning RSK04 kit installed. This is important to consider, given that as boost rises, so will boost drop due to core restriction. Thus, an intercooler can perform well at relatively low boost levels, but can begin to perform worse than stock if the boost drop is high enough to negate any gains seen from temperature drops.

Fitment

Not only did we want the AWE Tuning Audi 2.7T Performance Intercooler Kit to be clearly superior to the RS4 unit performance, but we also wanted to take the opportunity to design a kit that required very little modification to the US spec Audi 2.7T models during fitment. The RS4 intercooler units are made to fit the Europe only RS4, and mating them to a US spec 2.7T model requires significant cutting of both the intercoolers and the vehicle itself. Our design can be fitted in less than half the time of the typical RS4 kit. This means paying less for labor charges.

Since RS4 units were never intended to be used on the US S4 chassis, extensive modifying or tweaking of the areas around the intercoolers is needed to force fitment. The AWE Tuning Audi 2.7T Performance Intercooler Kit was designed and built to fit the US S4 chassis, resulting in a much better, cleaner fit with very little modification required.

Some key fitment detail differences between the AWE Tuning Audi 2.7T Performance Intercooler Kit and the RS4 "kits:"

• 100% coverage of the core face with AWE Tuning Carbon Fiber air ducts. RS4 kits leave gaps around face that lets cooling air escape
• No modification needed to the engine belly tray with our design
• Cores are secure and supported

Options

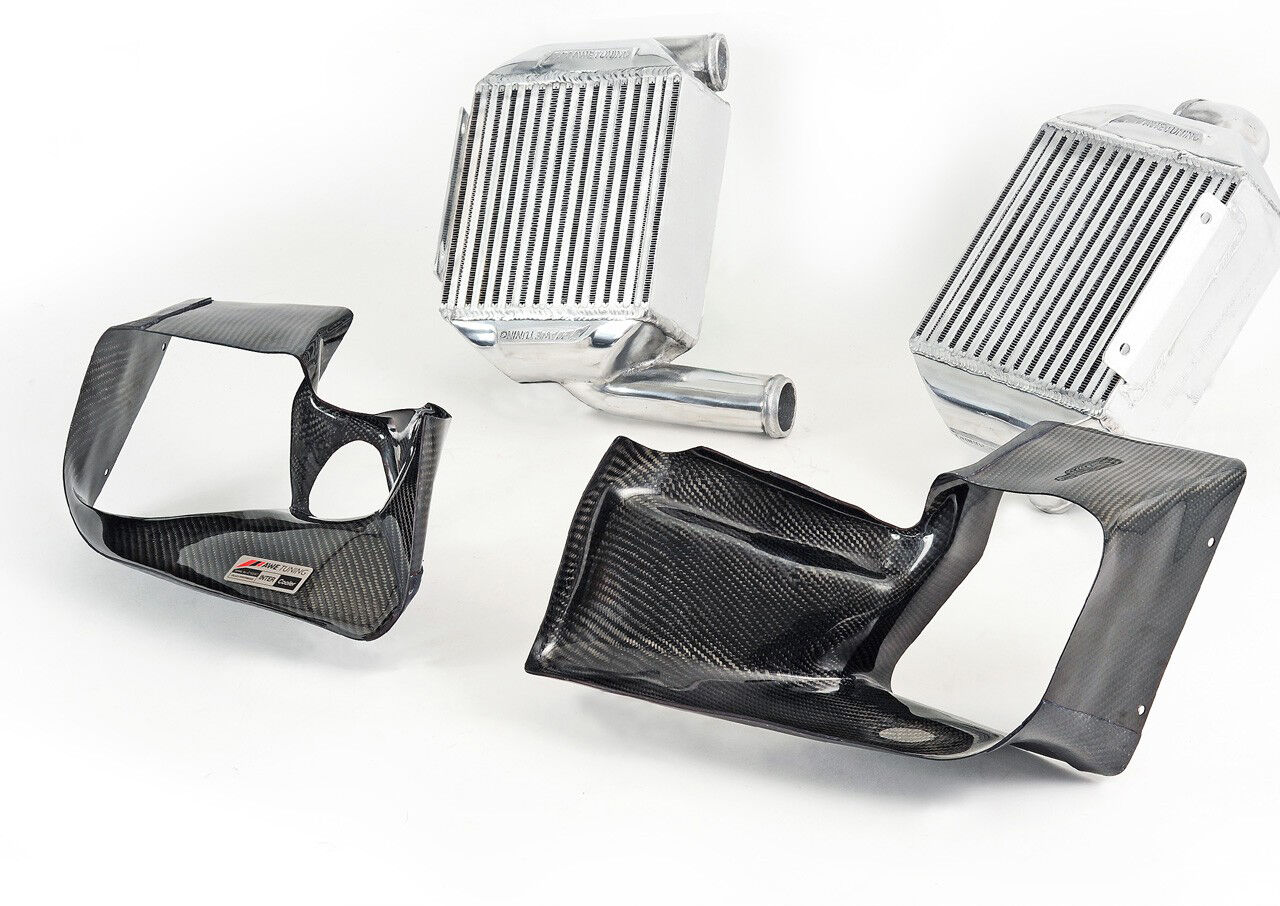

The AWE Tuning Audi 2.7T Performance Intercooler Kit comes complete with two AWE Tuning Performance Intercoolers, AWE Tuning carbon fiber shrouds (air ducts) and a detailed installation manual. No specialty tools are required for install.

The AWE Tuning carbon fiber shrouds are also available independently, should you already have the AWE Tuning Audi 2.7T Performance Intercooler Set and like to upgrade your shrouds to carbon fiber.

Note: minor trimming may be required. Be sure to refer to the installation instructions in the tab above.

Please note, the AWE Tuning Audi 2.7T Performance Intercooler Kit is for racing use only.

** NOTE:  In order to fit A6 or allroad models, minimal trimming of the bumper and shrouds is necessary.
